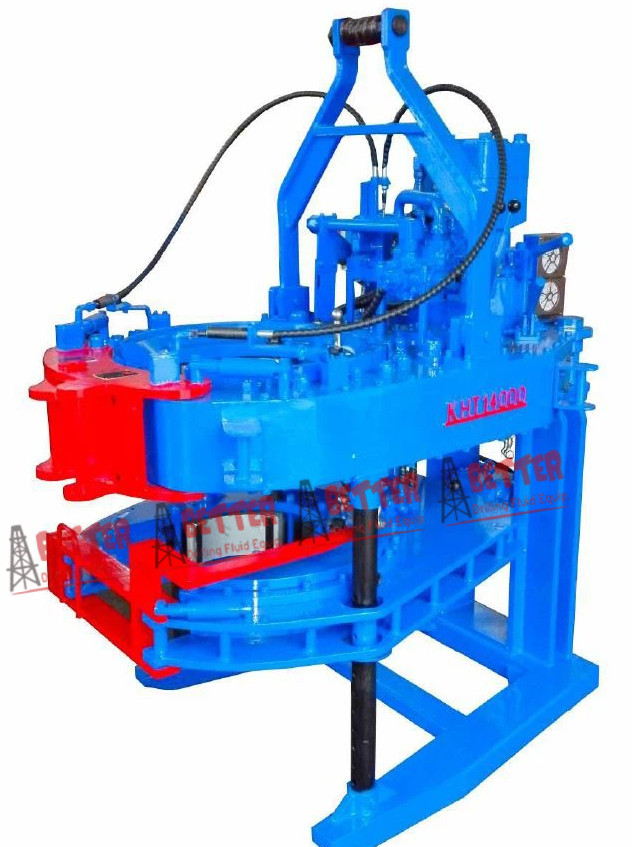

BETTER Hydraulic CasingTong BT- Model KT14000
| Place of Origin | CHINA |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K,8A |
| Model Number | Model KT14000 |
| Minimum Order Quantity | 1 pc |
| Packaging Details | Plywood case |
| Delivery Time | 30 Days |
| Payment Terms | TT |
| Supply Ability | 1000 Set per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | One Year | Low Gear Rated Torque | 70000N.m 50000ft.lbs |
|---|---|---|---|
| Pipe Size Range | 51/2"- 14" | Model | BT-Model KT14000 |
| Power Source | Hydraulic System | Advantage | High-efficiency |
| High Gear Rated Torque | 7500N.m 5500ft.lbs | Weight | Varies Depending On Model |
Product Description
BETTER offers BJ® / Cavins® / Foster® / Oil Country®TEDA style hydraulic power tongs
Model KT7625 hydraulic casing tong is a improved new product based on Model KT9625 hydraulic casing tong. The application rang of oil tube, drilling rod joint and small casing pipe is 60～194mm(23/8"～75/8").
Main Specification Of Hydraulic Power Tong
| Model | KT7625 | KT14000 | KT24500 |
| Range of Master Tong |
Φ60-194 23/8"- 75/8" |
Φ140-356 51/2"- 14" |
Φ245-622 95/8"- 241/2" |
| Range of Backup Tong |
Φ60-220 23/8"- 75/8" |
Φ140-394 51/2"- 151/2" |
------- |
| High Gear Rated Torque |
3900 N.m 2880 ft-lbs |
7500 N.m 5500 ft-lbs |
12000 N.m 8800 ft-lbs |
| Low Gear Rated Torque |
21000 N.m 15490 ft-lbs |
70000 N.m 50000 ft-lbs |
70000 N.m 50000 ft-lbs |
| High Gear Rated Speed | 60 RPM | 41 RPM | 30 RPM |
| Low Gear Rated Speed | 11 RPM | 4.5 RPM | 5.5 RPM |
| Rated Operation Pressure |
14 MPa 2000 psi |
17.2 MPa 2500 psi |
16 MPa 2320 psi |
| Max. Flow |
14 LPM 37 GPM |
150 LPM 40 GPM |
187.5 LPM 50 GPM |
| Dimension :L x W x H | 1500 x 700 x 1550 48.4"x23.6"x59" |
1620 x 972 x 1900 63.8"x38.3"x74.8" |
2120x1350x800 83.5"x53.2"x31.5" |
| Weight(including Backup Tong) |
760 kg 1675 lbs |
1720 kg 3780 lbs |
1800 kg 3970 lbs |
Contact us
BETTER Drilling Fluid Equipment Industrial Limited
Sales Assistant
Att.: Kim Qiu
http://www.drillingfluidsolution.com
sales@drillingfluidsolution.com
WhatsApp/wechat:18764068509
Company Profile
BETTER Drilling Fluid Solution Limited
was established in 2016, which is recognized as a qualified manufacturer and supplier of high-performance mission style centrifugal pumps, valves, flowline control products and oilfield equipment. Our products serves the onshore and offshore oil & gas drilling, water well drilling, chemical process sewage treatment, infrastructure, environmental, geotechnical, geothermal, HDD, and mineral exploration industries. All of our pump and products follows strict quality management system, from design, production, sale to after-sales. Our team has rich experience and knowledge to support our pump products to each region and markets. We understand what it takes to provide the best solutions in the drilling industries, as it is a 24-hour drilling industry where there is a great need for products with good quality and fast delivery of wear parts and /or service.

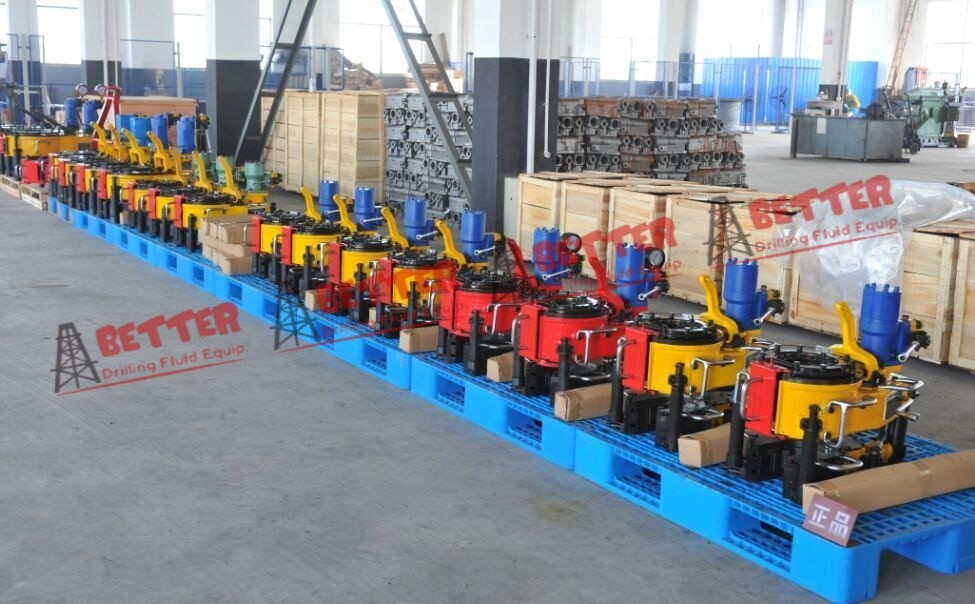

Our Factory
