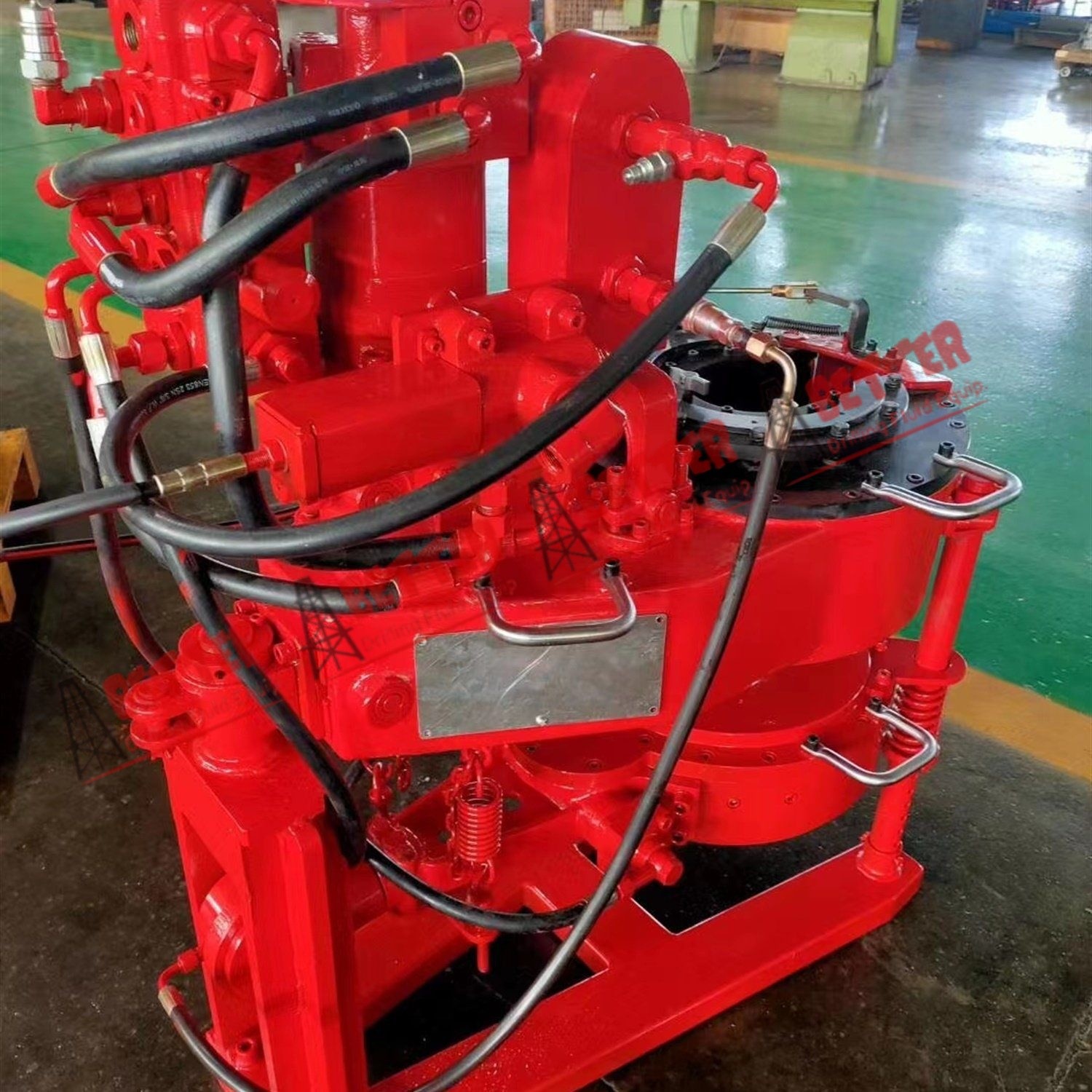

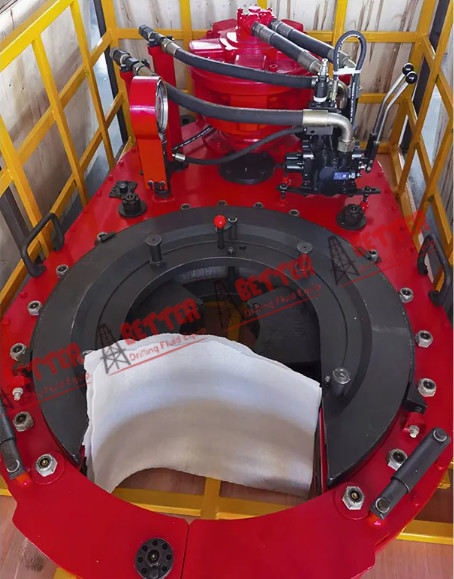

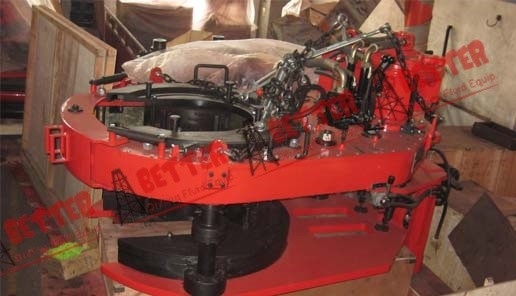

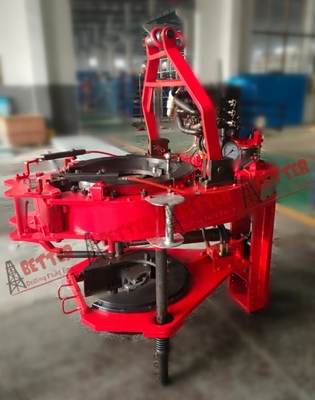

BETTER Hydraulic CasingTong BT- Model TQ508/70
| Place of Origin | CHINA |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K,8A |
| Model Number | Model TQ508/70 |
| Minimum Order Quantity | 1 pc |
| Packaging Details | Plywood case |
| Delivery Time | 30 Days |
| Payment Terms | TT |
| Supply Ability | 1000 Set per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | One Year | Low Gear Rated Torque | 70000N.m 50000ft.lbs |
|---|---|---|---|
| Pipe Size Range | 95/8″、103/4″、113/4″、133/8″、16″、185/8″、20″ | Model | BT-Model TQ508/70 |
| Power Source | Hydraulic System | Advantage | High-efficiency |
| High Gear Rated Torque | 10000N.m 7300ft.lbs | Weight | Varies Depending On Model |
Product Description
* Open type and simple to operate with an hard and integral tong head.
* Convenient to assemble and disassemble with double swing head jaws.
* Easy to operate, convenient to maintain and replace with brake belt assembly.
* Enhance the strength and rigidity with open gear supporting structure.
* Hydraulic mode wholly and mechanical gear shift.
* Artistic and strong jaws.
* Display, record and control the make-up torque by optional torque control system.

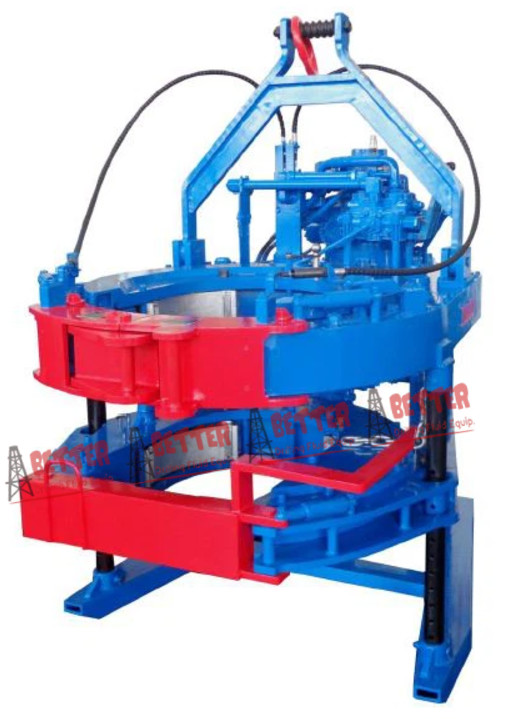

Main Specification Of Hydraulic Power Tong
| Model | TQ245/20Y | TQ340/35YA | TQ508/70 | TQ356-55 |
| Application range of master tong |
41/2" 5" 51/2" 7" 85/8" 95/8" |
51/2'' 65/8'' 7'' 85/8'' 95/8'' 103/4'' 135/8'' | 95/8″,103/4″,113/4″,133/8″,16″,185/8″,20″ |
41/2" - 14"
|
| Application range of backup tong | 95/8″,103/4″,113/4″,133/8″,16″,185/8″,20″ ,21″ | |||
| High Gear Torque |
2600N.m 12MPa 1924ft-lbs 1740psi |
4800N.m 13.8MPa 3540ft-lbs 1740psi |
10000N.m 7300ft.lbs |
4500N.m 16.6MPa 3319ft-lbs 2400psi |
| Low Gear Torque |
20000N.m 12MPa 14800ft-lbs 1740psi |
35000N.m 13.8MPa 25814ft-lbs 1740psi |
70000N.m 50000ft.lbs |
57400N.m16.6MPa 42400ft-lbs 2400psi |
| High Gear rpm | 67r/min | 42r/min | 23r/min | 76r/min |
| Low Gear rpm | 9r/min | 6r/min | 3r/min | 4r/min |
| Oil Flow |
120 L/min 31.7 gpm |
120 L/min 31.7 gpm |
132 L/min 35 gpm |
160 L/min 30 gpm |
| Dimension: L x W x H | 1500x 630 x 650 | 1580 x 900 x 850 |
2100x1300x1800
|
1590 x 950 x 900 |
| Weight(including Backup Tong) |
500kg 1100lbs |
750kg 1650lbs |
2700kg 5940lbs |
850kg 1870lbs |
