BETTER Mission Magnum Style 6x5x14 Centrifugal Slurry Pumps
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Mission Magnum |
| Minimum Order Quantity | 1 SET |
| Price | USD 2000.00-2200.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Painting Color | Can Be Customized, Red | Material | Hard Iron |
|---|---|---|---|
| Sealing Type | Mechanical Seal | Impeller | 14" Open Type |
| Shaft | Heavy Duty 2.5" | Suction Size | 6" |
| Discharge Size | 5" | Driven | Motor Or Diesel Engine |
Product Description
BETTER Mission Magnum Style pump are proven as reliable, heavy-duty, low-cost slurry pumps. Magnum type centrifugal pumps can be used in various of applications, like mud pumping, solids control, dredging, leveling or rig platform (ballast), barite, ferric oxide, mineral oil, base drilling muds, glass fibers, sugar processing, ash or coal conveyers, cement, mud cooling towers, underground construction, desanding and desilting, etc
BETTER Drilling Fluid Equipment offers a complete line of centrifugal sand pumps to suit for all kinds of drilling application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are availabe. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.
Parameters
| BETTER MODEL | SIZE | NAME | SEALING TYPE | IMPELLER SIZE |
| BT-640202123-ITXX** | 3 x 2 x 13 | Centrifugal Pump | Mechanical Seal | 13” |
| BT-640202222-ITXX** | 4 x 3 x 13 | Centrifugal Pump | Mechanical Seal | 13” |
| BT-640202321-ITXX** | 5 x 4 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640202529-ITXX** | 6 x 5 x 11 | Centrifugal Pump | Mechanical Seal | 11” |
| BT-640202628-ITXX** | 6 x 5 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640202826-ITXX** | 8 x 6 x 11 | Centrifugal Pump | Mechanical Seal | 11” |
| BT-640202925-ITXX** | 8 x 6 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640203121-ITXX** | 10 x 8 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
Features
• Up to 50% more capacity from the 8×6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing
Common Application
• Mud pumping – offshore/onshore
• Solids control
• Dredging
• Leveling or Rig Platform (ballast)
• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement

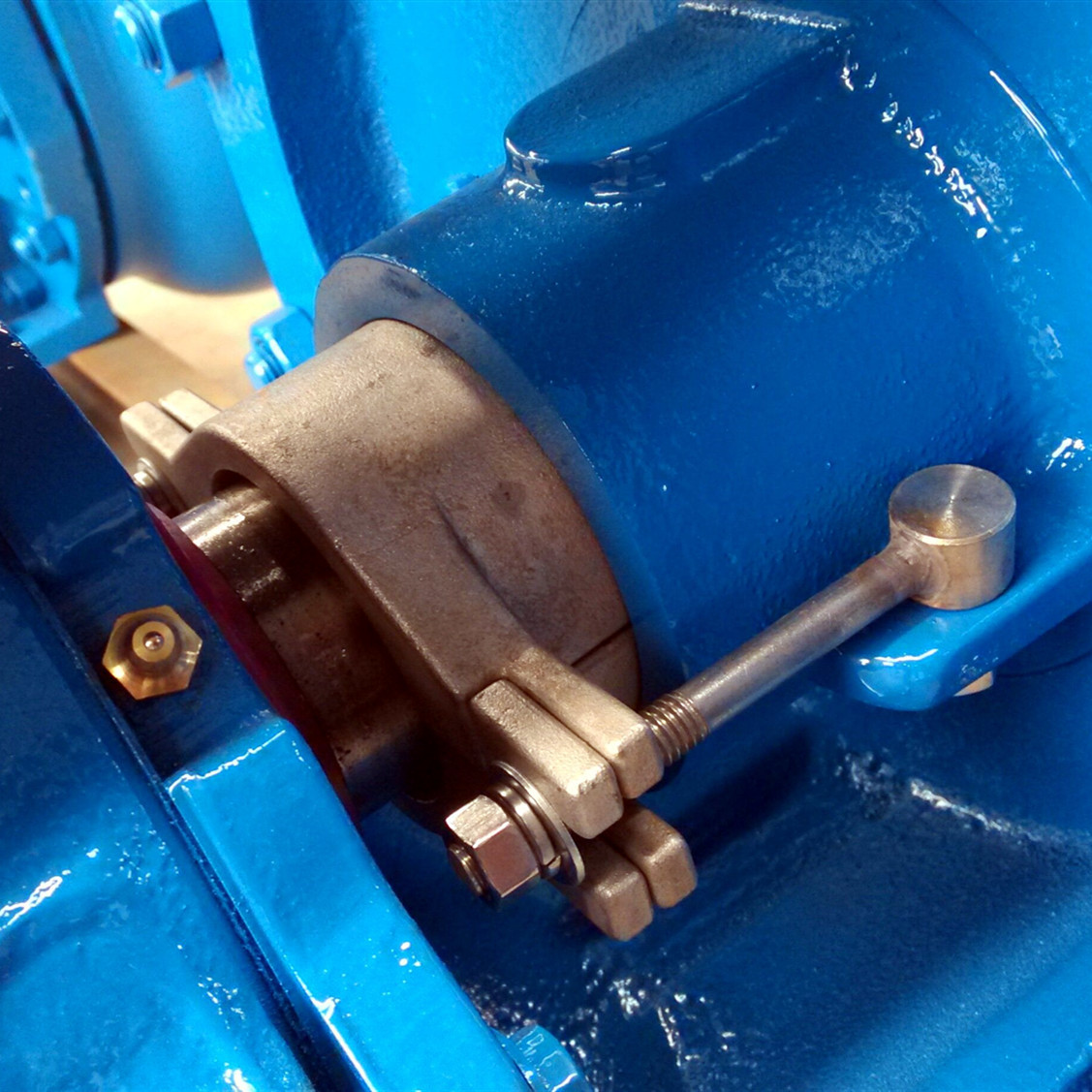

Products show
