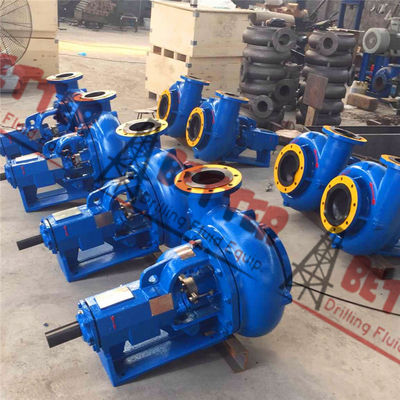

BETTER Mission Magnum 3x2x13 Centrifugal Slurry Pumps Complete
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Mission Magnum |
| Minimum Order Quantity | 1 SET |
| Price | USD 2000.00-2200.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Painting Color | Can Be Customized, Red | Material | Hard Iron |
|---|---|---|---|
| Sealing Type | Mechanical Seal | Impeller | 13" Open Type |
| Shaft | Heavy Duty 2.5" | Suction Size | 3" |
| Discharge Size | 2" | Driven | Motor Or Diesel Engine |
Product Description
BETTER Mission Magnum Style pump are proven as reliable, heavy-duty, low-cost slurry pumps. Magnum type centrifugal pumps can be used in various of applications, like mud pumping, solids control, dredging, leveling or rig platform (ballast), barite, ferric oxide, mineral oil, base drilling muds, glass fibers, sugar processing, ash or coal conveyers, cement, mud cooling towers, underground construction, desanding and desilting, etc
BETTER Drilling Fluid Equipment offers a complete line of centrifugal sand pumps to suit for all kinds of drilling application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are availabe. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.
Parameters
| BETTER MODEL | SIZE | NAME | SEALING TYPE | IMPELLER SIZE |
| BT-640202123-ITXX** | 3 x 2 x 13 | Centrifugal Pump | Mechanical Seal | 13” |
| BT-640202222-ITXX** | 4 x 3 x 13 | Centrifugal Pump | Mechanical Seal | 13” |
| BT-640202321-ITXX** | 5 x 4 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640202529-ITXX** | 6 x 5 x 11 | Centrifugal Pump | Mechanical Seal | 11” |
| BT-640202628-ITXX** | 6 x 5 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640202826-ITXX** | 8 x 6 x 11 | Centrifugal Pump | Mechanical Seal | 11” |
| BT-640202925-ITXX** | 8 x 6 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
| BT-640203121-ITXX** | 10 x 8 x 14 | Centrifugal Pump | Mechanical Seal | 14” |
Features
*Open impeller design
*Double mechanical seals application, combining packing seal and mechanical seal
*Innovated impeller vanes create lower axial thrust for improved bearing life.
*To adopt wear resistance nodular iron
*External adjustment of impeller clearance extends pump performance life.
*Structure equiv. to Mission Magnum I, and 2500 Supreme, halco 2500, interchangeable fluid end spare parts could be provided
Common Application
Barite, ferric oxide and mineral oil
Base drilling mud
Glass fibers
Sugar processing
Ash or coal conveyors
Cement
Mine de-watering
Lime slurry
Koalin clay
Crystalline forms
Products show
Contact Us
BETTER Drilling Fluid Equipment Industrial Limited
Sales Assistant
Att.: Kim Qiu
http://www.drillingfluidsolution.com
sales@drillingfluidsolution.com
WhatsApp/wechat:18764068509
Company Profile
BETTER Drilling Fluid Solution Limited
was established in 2016, which is recognized as a qualified manufacturer and supplier of high-performance mission style centrifugal pumps, valves, flowline control products and oilfield equipment. Our products serves the onshore and offshore oil & gas drilling, water well drilling, chemical process sewage treatment, infrastructure, environmental, geotechnical, geothermal, HDD, and mineral exploration industries. All of our pump and products follows strict quality management system, from design, production, sale to after-sales. Our team has rich experience and knowledge to support our pump products to each region and markets. We understand what it takes to provide the best solutions in the drilling industries, as it is a 24-hour drilling industry where there is a great need for products with good quality and fast delivery of wear parts and /or service.
