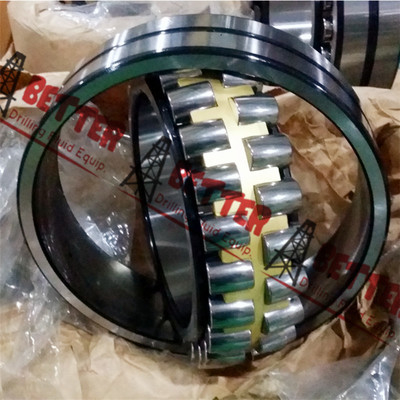

BETTER Mission /Mcm 250 Centrifugal Pump Inboard Bearing and Outbord Bearing 20615-1/20616-1
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | Halco 2500 |
| Minimum Order Quantity | 1 SET |
| Price | USD125.00-175.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Roller | Postion | Inboard Bearing, Outboard Bearing |
|---|---|---|---|
| Material | Bearing Steel, And Ss Ball |
Product Description
ETTER can provide superior quality O.B. BEARINGS AND I.B. BEARINGS,used for Heavy duty Centrifugal Pumps Mission 2500 supreme, Misson Magnum, Halco, MCM250, Doublelife, Mud Hog.
A series of fluid end parts could be provided, interchangeable with Mission Magnum I, and 2500 Supreme, halco 2500. The equivalent or same materials are selected to guarantee the unified quality.
| Bearing, inboard | 20615-1 | H20615-1 | 661009010 | TP-P25IBBRG | 50913-001 | 4B-250-BI | P25IBBRG | WWENT5313 | H20615-1 |
| Bearing, O.B. | 20616-1 | 20616-1S | 648408201S | TP-P25OBBRG | 50912-001 | 2A-250-BC | P25OBBRG | WWESL7311 | H20616-1 |
| CASINGS (including studs,nuts and gaskets) | |||||
| Item | Qty | MISSION Part No. |
MISSION Processing# |
Description | Material |
| 1* | 1 | 19203-01-30A | 641101753 | Casing,3×2×13 | QT600-3 |
| 1* | 1 | 19205-01-30A | 641101902 | Casing,4×3×13 | QT600-3 |
| 1* | 1 | 19122-01-30A | 641101456 | Casing,6×5×11 | QT600-3 |
| 1* | 1 | 19123-01-30A | 641101605 | Casing,6×5×14 | QT600-3 |
| 1* | 1 | 19763-01-30A | 641102157 | Casing,8×6×11 | QT600-3 |
| 1* | 1 | 19117-01-30A | 641101308 | Casing,8×6×14 | QT600-3 |
| 1* | 1 | 20937-01-30A | 641102322 | Casing,10×8×14 | QT600-3 |
| IMPELLERS | |||||
| ltem | Qty | MISSION Part No. |
Description | Material | |
| 2* | 1 | 19204-XX-30 | mpeller,3×2×13 | QT600-3 |
1.XX-Impeller code-First X equals dia.of impeller in inches minus 4.Therefore 10"=6,9"=5,etc...14"use lettetA; |
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | QT600-3 | |
| 2* | 1 | 19121-XX-30 | mpeller,6×5×11 | QT600-3 | |
| 2* | 1 | 19121-XX-30 | Impeller,6×5×14 | QT600-3 | |
| 2* | 1 | 19121-XX-30 | Impeller,8×6×11 | QT600-3 | |
| 2* | 1 | 19116-XX-30 | Impeller,8×6×14 | QT600-3 | |
| 2* | 1 | 21867-XX-30 | mpeller,10×8×14 | QT600-3 | |
We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.
1A H10399-46-1 GASKET, CASING FIBER
1B H3932-61 NUT, CASING STUDS STAINLESS, 3/4-10 HEX HEAD
1C H2507-3 STUD, CASING STEEL, 3/4-10 X 3-1/4" LONG
1CA H3862-76 STUD, CASING STEEL, 3/4-10 X 3" LONG
2A H19110-72 SEAL, IMPELLER
3 H22223-01-30A STUFFING BOX COVER, SEAL HARD IRON
3 H20614-01-30A STUFFING BOX COVER, PACKED HARD IRON
3A H3861-117 BOLT, STUFFING BOX STEEL, 1/2-13 X 1-1/4"
4 H20622A GLAND SET 300 STAINLESS STEEL
5 H8264-24-1A PACKING 5 RINGS & LANTERN RING GRAPHITE ASBESTOS
5A H2537-24A PACKING 3 RINGS FOR SEAL GRAPHITE ASBESTOS
6 H3701A BOLT, GLAND ASSEMBLY 300 STAINLESS STEEL
7 H20612-02-33 SHAFT 4140
7A H20613-21G-7A SLEEVE, SHAFT 416 SS, CERAMIC COATED
7B H4372-5-21 KEY, COUPLING END 416 STAINLESS STEEL
7C H7496-236 SEAL, SHAFT SLEEVE BUNA-N
8 H22210-1 DEFLECTOR RUBBER
9 H17444 FRAME CAST IRON
9A H2538 JACK BOLTS STAINLESS STEEL
10A H17950 COVER, INBOARD BEARING CAST IRON
10B H20625 GASKET, INBOARD BRG. COVER ASBESTOS
10C H20619-01 OIL SEAL, INBOARD BRG. COVER BUNA-N
10D H3861-1 BOLT-INBOARD, BEARING COVER STEEL, 1/2"-13 X 1-1/2" LONG
10F H20620-01 EXCLUSION SEAL, INBD. BRG. BUNA-N
11 H20615-1 BEARING, INBOARD FAFNIR 5313 WBR., MRC5313
12 H20624-01-01 HOUSING, OUTBOARD BEARING CAST IRON
12A H7496-253 SEAL, BEARING HOUSING BUNA-N
12B H3861-138 BOLTS, BEARING HOUSING STEEL, 1/2"-13 X 1-1/2" LONG
12C H3932-62 NUTS, BEARING HOUSING 300 S.S.1/2-13 JAM NUT
13 H20617-01-01 COVER, OUTBOARD BEARING DUCTILE IRON
13B H7496-26 SEAL, OUTBOARD BRG. COVER BUNA-N
13C H20619-02 OIL SEAL, OUTBOARD BRG. CVR. BUNA-N
13D H3861-139 BOLT, OUTBOARD BRG. COVER STEEL, 3/8-16 X 1" LONG
14 H20616-1 BEARING, OUTBOARD FAFNIR 7311 PW-BR-SU, MR731
14A H6124-4 LOCK WASHER, BEARING SKF-W1" (STEEL)
14B H6123-4 LOCK NUT, BEARING SKF-N1" (STEEL)
17 H22451-1A MECHANICAL SEAL TUNGSTEN CARBIDE
H10399-46-1A FLUID END GASKET KIT
H20625A POWER END GAKET KIT
H20619A GREASE SEAL KIT
H6123-4A LOCKNUT KIT
H20952 IMPELLER REMOVAL WRENCH
