BETTER Demco DM Type Mud Gate Valve Equiv to O'Drill MCM style Repair Kit 2",4" 7500wp
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | 2" 4”7500PSI, XXH BW, STD |
| Minimum Order Quantity | 1 SET |
| Price | USD 500.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Or Nonstandard | Standard | Structure | Gate |
|---|---|---|---|
| Pressure | High Pressure | Power | Manual |
| Material | Alloy | Temperature Of Media | Normal Temperature |
| Media | Base |
Product Description
BETTER Mud Gate Valve is equivalent to DEMCO model DM series.Our DEMCO DM style gate valves, the good quality gate valve in the oil and gas drilling market, are specifically engineered for the rigorous requirements of oilfield applications.
Products show
Specifications
Our valves also can full interchangeable with famous brand O’DrillMCM.
| 2” | 3” | 4” | ||||
| 3000psi | 5000psi | 3000psi | 5000psi | 3000psi | 5000psi | |
| Minor Repair kit | DGVRK230-102 | DGVRK250-102 | DGVRK330-102 | DGVRK350-102 | DGVRK430-102 | DGVRK450-102 |
| Major Repair kit | DGVRK230-101 | DGVRK250-101 | DGVRK330-101 | DGVRK350-101 | DGVRK430-101 | DGVRK450-101 |

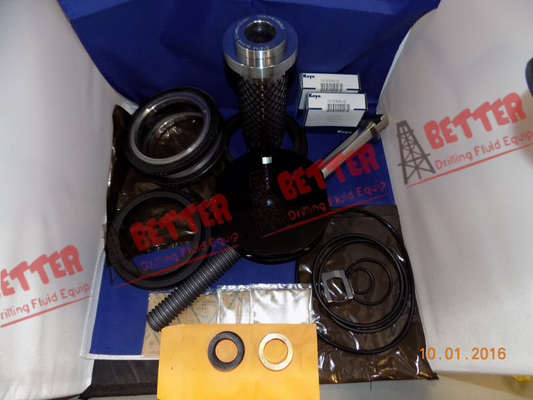

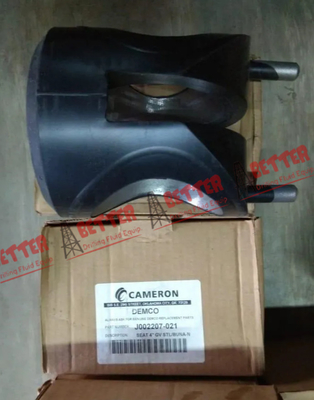

We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”,3” 4” and 4”x 5” at 2000psi,3000psi, 5000psi
2”7500 psi Gate Valve
| 1 | DGV -J005195 | Lube fitting |
| 2 | DGV - 2139712-01 | Handle |
| 4 | DGV •J001891 | Lock Handle |
| 6 | DGV -J001913 | Stem Screw |
| 7 | DGV •J005526-224 | Housing Seal |
| 8 | DGV •J024982 | Screw Housing |
| 9 | DGV -J024983-107 | Stem |
| 10 | DGV - 2712425-13 | Secondary Seal |
| 11 | DGV •J001940 | Packing Retaine |
| 12 | DGV -J023231-008 | Stem Seal Assembly |
| DGV -J023231-006 | (with bronze bushing) | |
| 13 | DGV • M450480 | Gate Clip |
| 14 | DGV • 2269414-01 DGV • 2712425-18 |
Body Wear Ring |
| 15 | Wea Ring Seal | |
| 16 | DGV •J024985-030 | Bonnet |
| 18 | DGV • 2712425-60 | Bonnet Seal |
| 19 | DGV - 2269412-01 | Gate |
| 20 | DGV- 2-7500-BW | Body option: Flanged |
| 21 | DGV • 2269403-01 | Seat |
| 22 | DGV •J005420-18728 | Cotter Pin |
| 23 | DGV •J002066 | Housing Stud |
| 24 | DGV • 2709000-08-01 | Housing Stud Nut |
| 25 | DGV -J015432 | Body Stud |
| 26 | DGV - 2709000-10-01 | Body Stud Nut |
4”7500 psi Gate Valve
| 1 | DGV - J015334 | Handwheel |
| 2 | DGV • J014832 | Handwheel Screw |
| 3 | DGV - J005666-32028 | Retainer Screw |
| 4 | DGV - M450505 | Gate Clip |
| 5 | DGV - J015853-008 | Stem Seal Assembly |
| DGV • J015853-006 | (with bronze Bushing) | |
| 6 | DGV • 2140684-01 | Stem |
| 7 | DGV - 2172523-02 | Bonnet |
| 8 | DGV- 2171978-11-01 | Body Stud |
| 9 | DGV - J053252-140 | Body Stud Nut |
| 10 | DGV - 2712426-11 | Bonnet Seal |
| 11 | DGV - 4-7500-BW | Body Option: Flanged |
| 12 | DGV - 2139746-01 | Seat |
| 13 | DGV-2171267-01 | Gate |
| 14 | DGV - J005526-228 | Housing Seal |
| 15 | DGV - M452290 | Body Wear Ring |
| 16 | DGV • 2712787-04 | Wea「Ring Seal |
| 18 | DGV • J0023888 | Stem Screw with Bearings |
| 19 | DGV • J015332 | Housing |
| 20 | DGV • 2726268-01 | Secondary Seal |
| 21 | DGV - 2172425-02 | Packing Retainer |
| 22 | DGV - 702500-14-00-34 | Housing Screw |
| 23 | DGV - J012852 | Stem Tube |
| 24 | DGV- J015855 | Stem Cap |
| 25 | OGV • J005195 | Lube Fitting |
| 26 | DGV • J051971 | Relief FittinQ |
Related Products
Designed for dependable, heavy-duty performance in abrasive service conditions, DEMCO DM gate valves are commonly selected for a number of oilfield applications, including:
- Drilling standpipe manifold
- Pump manifold block valves
- High-pressure mud mixing lines
- High-pressure drilling system block valves
