BETTER Demco DM Type Mud Gate Valve Equiv to O'Drill MCM style 2" 2000psi,3000psi &5000psi
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | 2”2000PSI, XXH BW, STD |
| Minimum Order Quantity | 1 SET |
| Price | USD 500.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Or Nonstandard | Standard | Structure | Gate |
|---|---|---|---|
| Pressure | High Pressure | Power | Manual |
| Material | Alloy | Temperature Of Media | Normal Temperature |
| Media | Base |
Product Description
BETTER Mud Gate Valve is equivalent to DEMCO model DM series.Our DEMCO DM style gate valves, the good quality gate valve in the oil and gas drilling market, are specifically engineered for the rigorous requirements of oilfield applications.

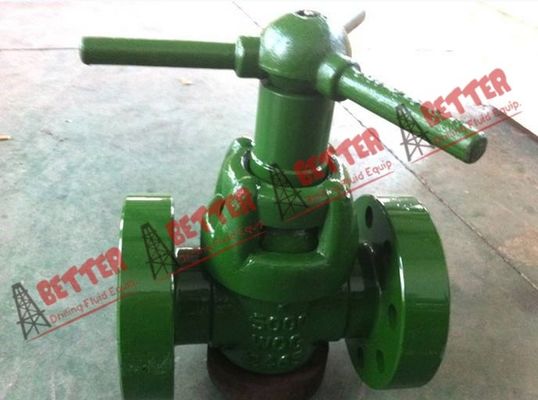

Products show
Specifications
| CONNECTION TYPE | DIMENSION | 2” FULL PORT | ||
| 2000 WP | 3000 WP | 5000 WP | ||
| Full Port Threaded |
Height-397mm Width-229mm |
J001026 | J001027//M2027 | J001028//M2028 |
| Weld | J001029 | J001030/M2030 | J001031/M2031 | |
| Grooved | J011920 | - | - | |
| Flanged (RTJ) |
Height-397mm Width-295mm |
J001023 | J001024//M2024 | J001025/M2025 |
| Flange O.D. | / | 165mm | 216mm | 216mm |
| Flange Bolts-Size | / | 8 – 5/8” | 8 – 7/8” | 8 – 7/8” |
| Ring Number RTJ | / | R-23 | R-24 | R-24 |
Our valves also can full interchangeable with famous brand O’DrillMCM.
| 2” | 3” | 4” | ||||
| 3000psi | 5000psi | 3000psi | 5000psi | 3000psi | 5000psi | |
| Minor Repair kit | DGVRK230-102 | DGVRK250-102 | DGVRK330-102 | DGVRK350-102 | DGVRK430-102 | DGVRK450-102 |
| Major Repair kit | DGVRK230-101 | DGVRK250-101 | DGVRK330-101 | DGVRK350-101 | DGVRK430-101 | DGVRK450-101 |
We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”,3” 4” and 4”x 5” at 2000psi,3000psi, 5000psi
| REF | Description size | WT | 2’’ 3000wp 2’’5000wp | |
| 1 |
LUBE FITTING Steel |
.1# | 5195 | |
| 2 |
HUB ASSEMBLY Steel |
5# | 14687 | |
| 4 |
LOCK HANDLE Steel |
1# | 1891 | |
| 6 |
STEM SCREW Steel |
3# | 1913 | |
| 7 |
STEM SCREW SEAL • Buna N |
1# | 5530-224 | |
| 8 |
SCREW HOUSING Steel |
4# | 1848 | |
| 9 |
STEM • 303 SS 316 SS |
1# |
1931 -002 1931 -008 |
|
| 10 |
SECONDARY SEAL • Buna N |
1# | 5530 -210 | |
| 11 |
RETAINER • Steel |
1# | 1940 | |
| 12 |
STEM SEAL ASSEMBLY (Includes Bronze Bushing) • Buna N V1ton |
1# |
1949 -001 1949 -006 |
|
| 13 |
LOCK SCREW Steel |
1# | 5665-22004 | |
| 15 |
COUPLING WCB Steel |
16# | 1446 -020 | 1445-030 |
| 16 |
BONNET ANSI 1029 Steel -Uncoated |
7# | 1237 - 020 | |
| 17 |
INDEX PIN Steel |
1# | 1981 | |
| 18 |
BONNET SEAL : Buna Viton |
1# |
5530-342 Viton 5531 -342 |
|
| 19 |
GATE : Steel, Nickel Plated 316 ss |
3# |
1887 -002 1887 - 008 |
|
| 20 |
BODY, UNCOATED Steel SCREWED-AP! -LP FULL PORT WELD -SCH. 80 -SCH. XXH -SCH. 160 FLANGED - RT J |
29#
29#
7# |
1285-020
1307 -120 1307 -220 1307 - 520 2039 -120 |
1271 -030
1309 - 130 1309 - 230 1309 -530 1510 -230 |
| 21 |
SEAT Steel • -Buna N -Viton 316 ss -Buna N -Viton |
1.5#
1.5# |
1876 -021 1876-021 1876-022 1876-022 1876-081 1876-081 1876-082 1876-082 |
|
| 22 |
PIN, LOCK HANDLE Steel |
1# | 5420 -18728 | |
Related Products
Designed for dependable, heavy-duty performance in abrasive service conditions, DEMCO DM gate valves are commonly selected for a number of oilfield applications, including:
- Drilling standpipe manifold
- Pump manifold block valves
- High-pressure mud mixing lines
- High-pressure drilling system block valves
