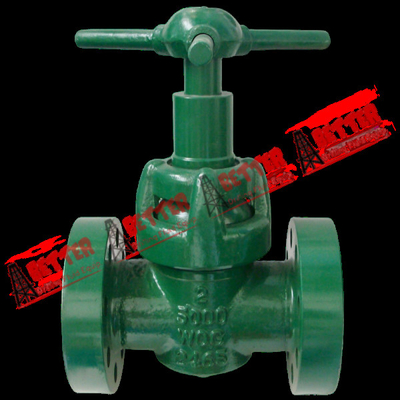

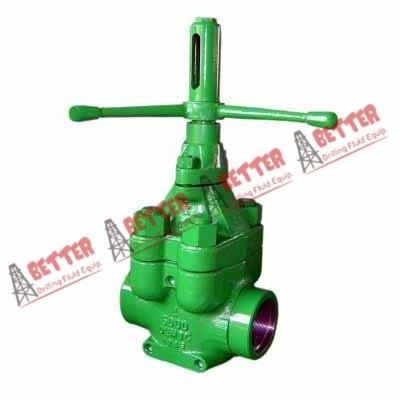

BETTER DEMCO DM Type Mud Gate Valve, 2"-5000 psi WP
| Place of Origin | China |
|---|---|
| Brand Name | BETTER |
| Certification | API 7K, 6A, 8C, ISO |
| Model Number | 2" 2000PSI, XXH BW, STD |
| Minimum Order Quantity | 1 SET |
| Price | USD 500.00 PER SET |
| Packaging Details | Carton, Plywood Case |
| Delivery Time | 7-10 days |
| Payment Terms | T/T, West Union |
| Supply Ability | Fast Delivery, Plenty in Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard Or Nonstandard | Standard | Structure | Gate |
|---|---|---|---|
| Pressure | High Pressure | Power | Manual |
| Material | Alloy | Temperature Of Media | Normal Temperature |
| Media | Base |
Product Description
BETTER Mud Gate Valve is equivalent to DEMCO model DM series.Our DEMCO DM style gate valves, the good quality gate valve in the oil and gas drilling market, are specifically engineered for the rigorous requirements of oilfield applications.

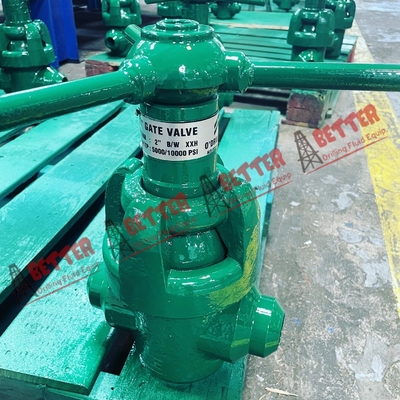

Products show
Specifications
All our valves are designed in accordance with API 6A standard and can full interchangeable with famous brand CAMERON/OTECO/MUDKING equivalent to DEMCO DM type.
| CONNECTION TYPE | DIMENSION | 2” FULL PORT | ||
| 2000 WP | 3000 WP | 5000 WP | ||
| Full Port Threaded |
Height-397mm Width-229mm |
J001026 | J001027//M2027 | J001028//M2028 |
| Weld | J001029 | J001030/M2030 | J001031/M2031 | |
| Grooved | J011920 | - | - | |
| Flanged (RTJ) |
Height-397mm Width-295mm |
J001023 | J001024//M2024 | J001025/M2025 |
| Flange O.D. | / | 165mm | 216mm | 216mm |
| Flange Bolts-Size | / | 8 – 5/8” | 8 – 7/8” | 8 – 7/8” |
| Ring Number RTJ | / | R-23 | R-24 | R-24 |
2” 2000PSI FULL PORT Threaded-J001026, Weld-J001029, Grooved-J001920, Flanged-J001023
2” 3000PSI FULL PORT Threaded-J001027, Weld-J001030, Flanged-J001024
2” 5000PSI FULL PORT Threaded-J001028, Weld-J001031, Flanged-J001025
Gate Valve, 2" 2000 PSI Equiv.to Oteco Model 22
Gate Valve, 2" 3000 PSI Equiv.to Oteco Model 23
Gate Valve, 2" 5000 PSI Equiv.to Oteco Model 25
Gate Valve, 2" 5000 PSI Equiv.to MUDKING M1028/M1031/M1025
We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”,3” 4” and 4”x 5” at 2000psi,3000psi, 5000psi
| NO. | DESCRIPTION | MATERIAL | Cameron PART NO. |
| 1 | Lube Fitting | Steel | J005195 |
| 2 | Handle | ASTM A536 Ductile Iron | 2139712-01 |
| 3 | Pin, Lock Handle | Steel | J005420-18728 |
| 4 | Lock handle | C-1213 | J001891 |
| 5 | Coupling | A216 /A487Steel | J001446-020/030 |
| 6 | Stem Screw Seal | Buna-N | J005526-224 |
| 7 | Screw Housing | C-1018 | J001848 |
| 8 | Lock Screw | Steel | J005665-22004 |
| 9 | Stem Screw | C-1213 | J001913 |
| 10 | Secondary Seal | Buna-N | J005526-210 |
| 11 | Retainer | C-1213 | J001940 |
| 12 | Stem Seal Assembly | Buna-N/ | J001949-001/006 |
| 13 | Bonnet | ASTM A105 | J001237-XXX |
| 14 | Stem | 303 SS/316 SS | J001931-002/008 |
| 15 | Gate | Steel, Nickel Plated/316ss | J001887-002/J001887-008 |
| 16 | Seat Assembly | Inserts: Ductile Iron/Steel/316ss Elastomers: Buna-N |
J001876-011/J001876-012 J001876-021/J001876-022 J001876-081/J001876-082 |
| 17 | Bonnet Seal | Buna-N/ | J005526-342/J005531-342 |
| 18 | Index Pin | Steel | J001981 |
| 19 | Body | A105 A216 A487 | / |
| NOTE |
Major Repair Kit J025091-10221 (including Gate, Seat, Bonnet Seal, Stem Screw, Stem Screw Seal, Stem, Secondary Seal, Stem Seal Assy.) Minor Repair Kit J025091-00221 (including Gate, Seat, Bonnet Seal) |
||
Major Repair Kit J025091-10221, J025091-10321, J025091-10421
Minor Repair Kit J025091-00221, J025091-00321, J025091-00421
